USB-Relay-1 w/ ATtiny45
These informations are provided “AS IS” and without any warranty of any kind.

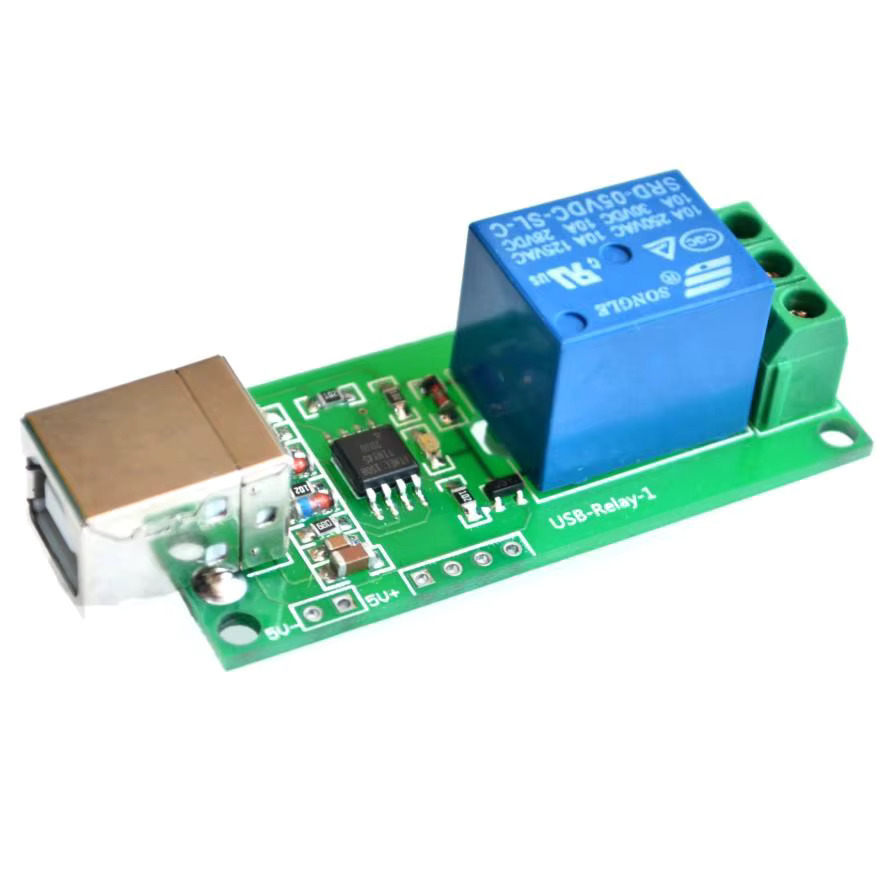

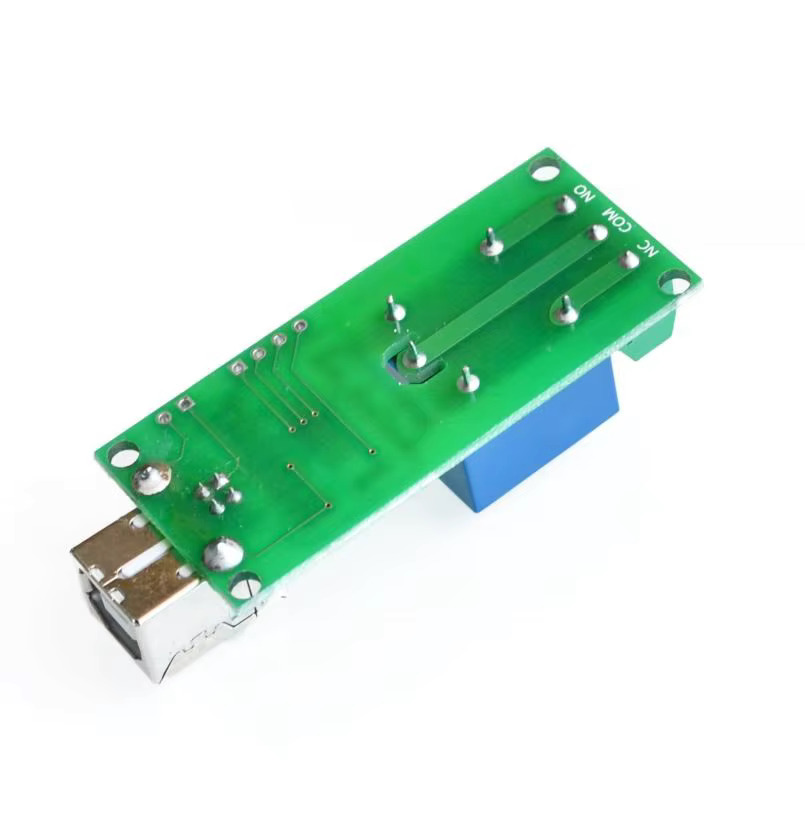

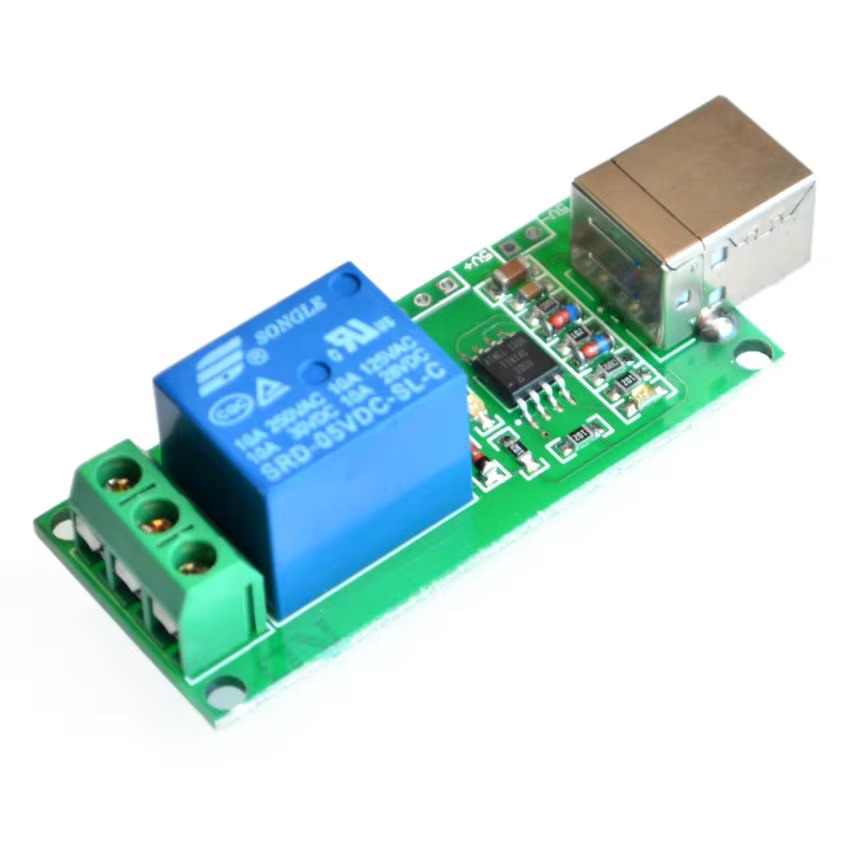

The Board
| General Overview / Specs | |
|---|---|
| Model | USB-Relay-1 ATtiny45 |
| Manufacturer | ??? |
| Made in | Mainland China |
| Power Supply Voltage | 5 V (USB) |
| Max. USB Current | 100 mA |
| USB Connector | USB 2.0 Type B Socket |
| USB HID Device Vendor | 16c0 Van Ooijen Technische Informatica |
| USB HID Device Product | 05df HID device except mice, keyboards and joysticks |
| Max. Communication Speed | 12 Mbps |
| Relays | 1 |
| Relay Connectors | Screw Terminal 5.08 mm (NO,COM,NC) |
| Relay Type | HONG WEI JQC3F-05VDC-C |
| Max. Switching Voltage | 250 VAC / 30 VDC |
| Max. Switching Current | 10 A |
| Protections | ??? |
| LED Indicators | Power, Relay 1 |
| Dimensions | 56.5 × 24.9 mm |
| Operating Temperature | ??? |
